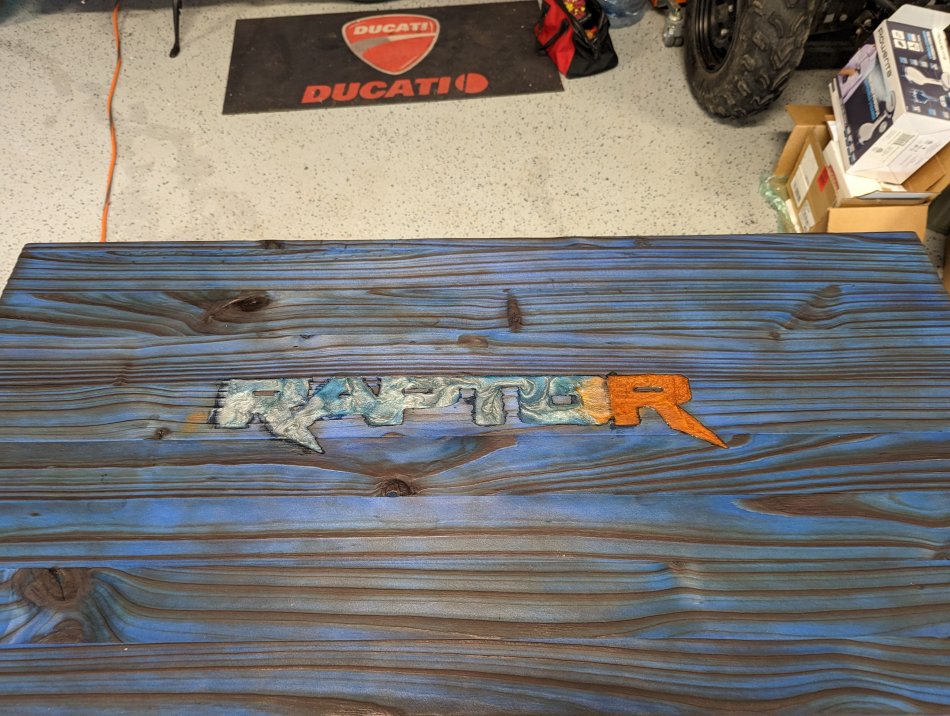

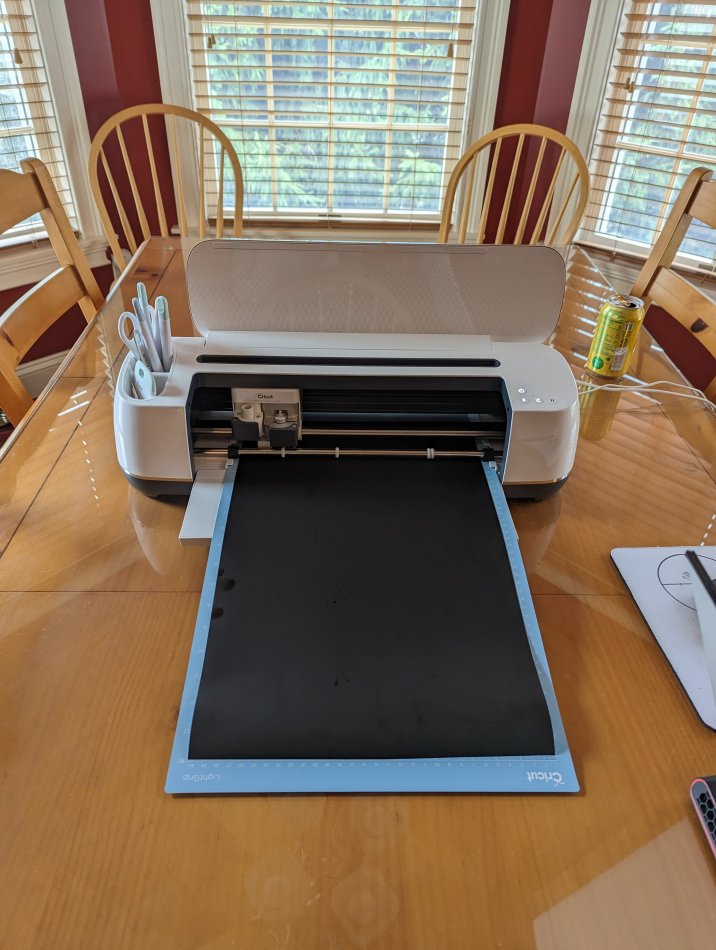

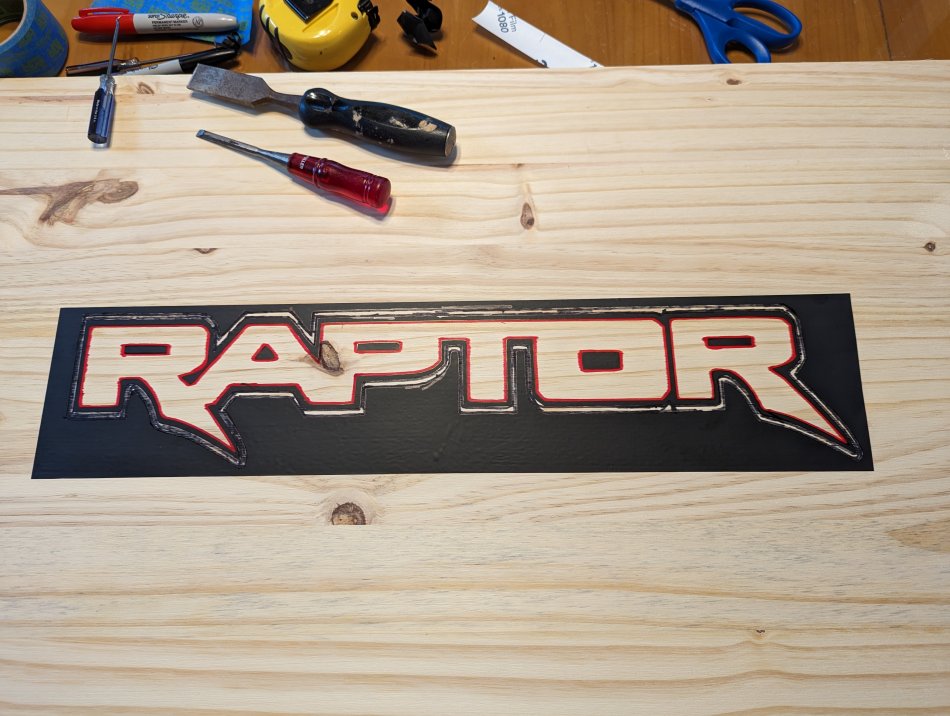

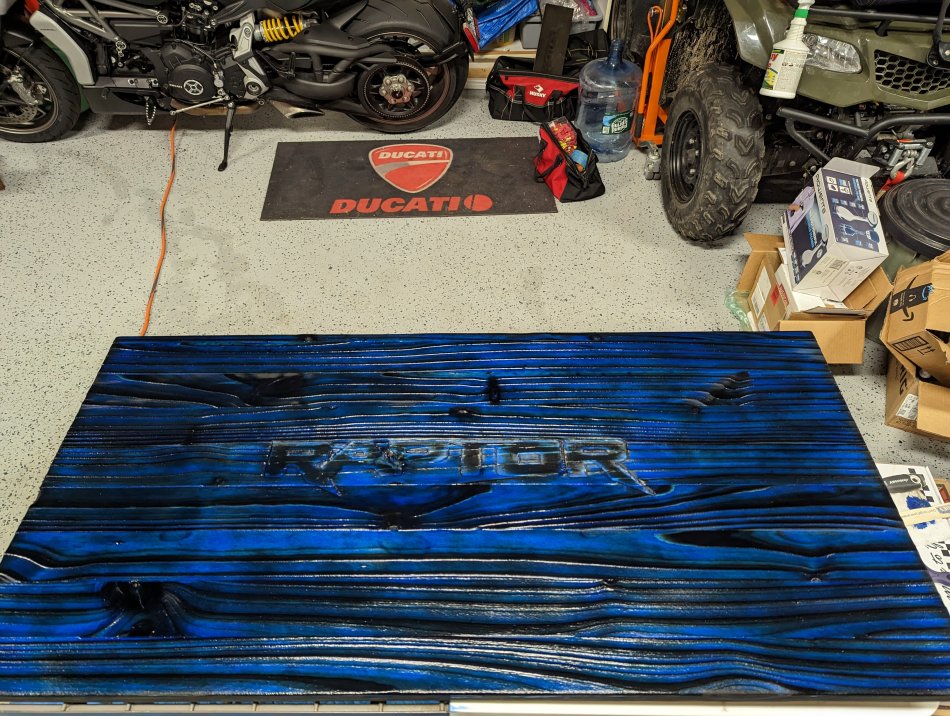

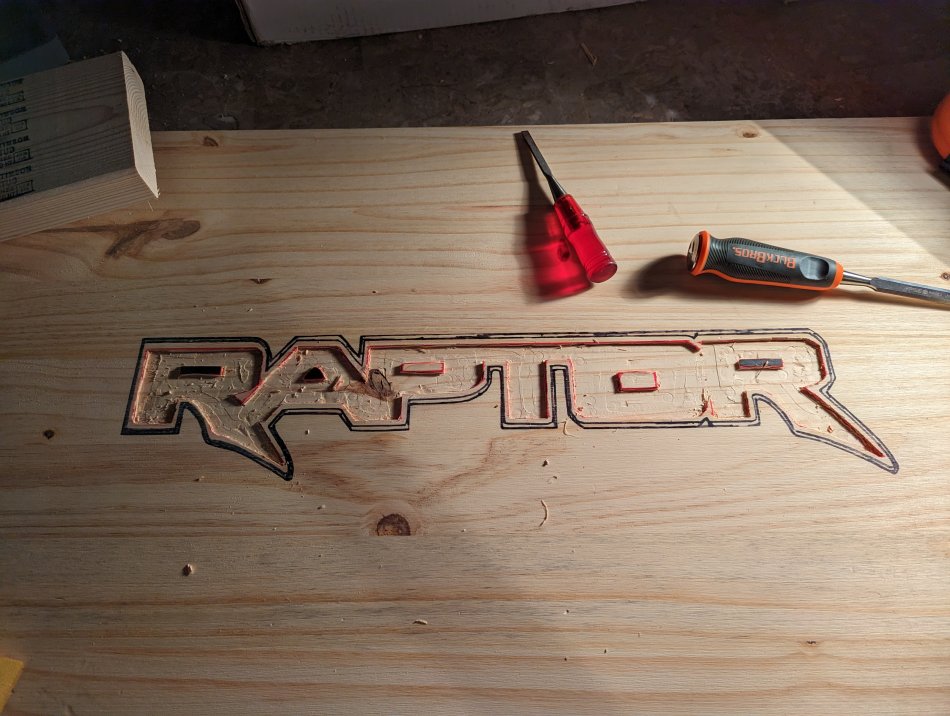

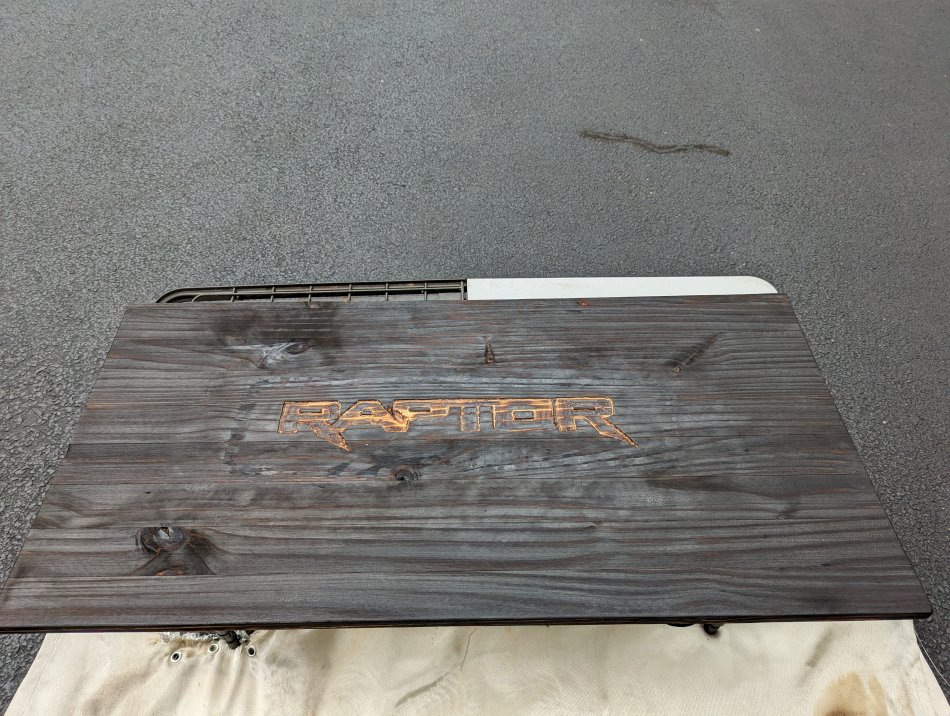

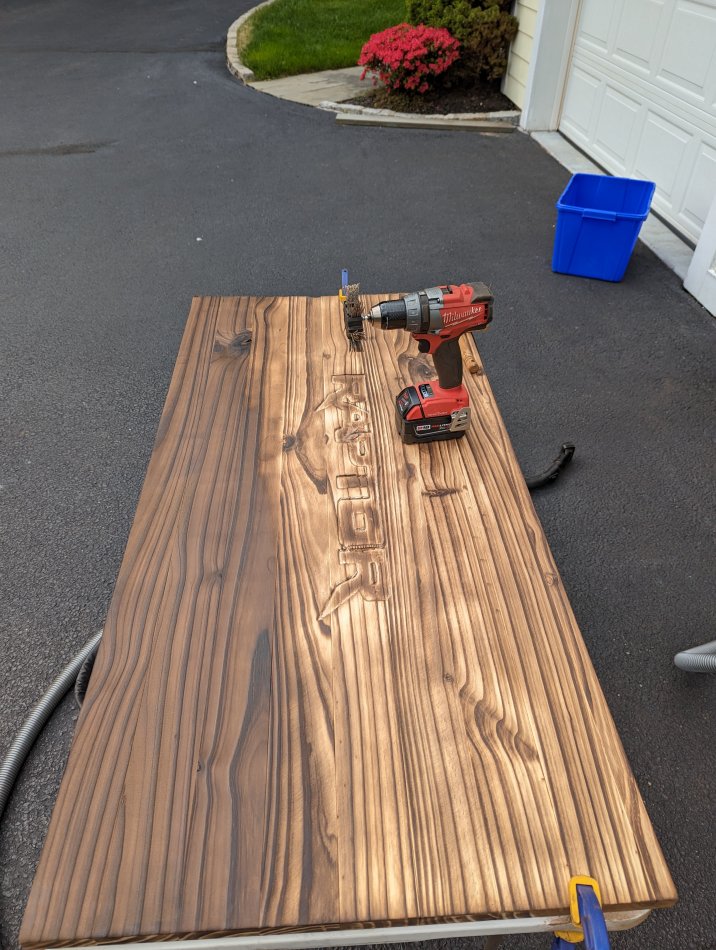

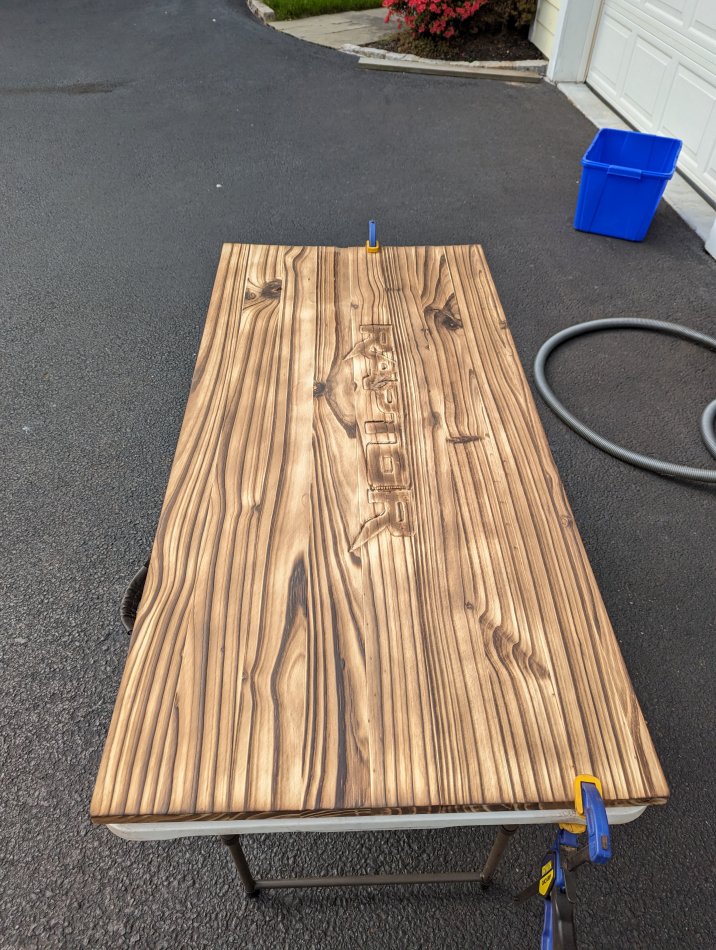

So over on 6G a few guys started talking about a cargo shelf and how for less than $30 you could easily get a 2' x 4' piece of MDF and it sits right on the "armrest" bump outs in the rear cargo area of a 4dr and functions as a) a shelf , b) a means for protecting other cargo from prying eyes and c) as a wind buffer for loose items when your top is down (it doesn't go all the way to the back door though) And since I am in the home stretch of my build date coming (6/2) and I'm "between work situations" I have alot of time on my hands. I decided I'd make a shelf for myself and since I wasn't keen on using MDF - since if it gets wet is useless. I wanted something with some pop and unique. So I started looking at youttube videos and came up with this (it's not 100% done yet but pretty close). Hopefully the pictures post in the right order - looks like reverse chrono order. But it is a shou sugi ban inspired torched wood, stained blue ( to match my interior)
I learned alot so this probably won't be the only one I do - can't rush it is probably the biggest thing. Clear coats getting done after the color fill cures. (also this was not even close to $30 - probably spent $300+ on materials and some new tools alone - but it was a fun project.


Attachments

  • PXL_20230504_124436514.jpg
    188.4 KB · Views: 118
  • PXL_20230504_123148850.jpg
    159.6 KB · Views: 89
  • PXL_20230504_003517964.jpg
    213.2 KB · Views: 93
  • PXL_20230503_200849143.jpg
    190.3 KB · Views: 97
  • PXL_20230503_193547401.jpg
    158.3 KB · Views: 91
  • PXL_20230501_190453849.jpg
    179.2 KB · Views: 81
  • PXL_20230429_231549745.jpg
    123.2 KB · Views: 101
  • PXL_20230429_201623408.jpg
    123.2 KB · Views: 85
  • PXL_20230429_192354060.jpg
    96.2 KB · Views: 95
  • PXL_20230429_191847540.jpg
    115.7 KB · Views: 88
OP
OP
Johnny Mo

Johnny Mo

Member
Joined
Feb 20, 2022
Messages
89
Reaction score
57
Location
Westchester County NY

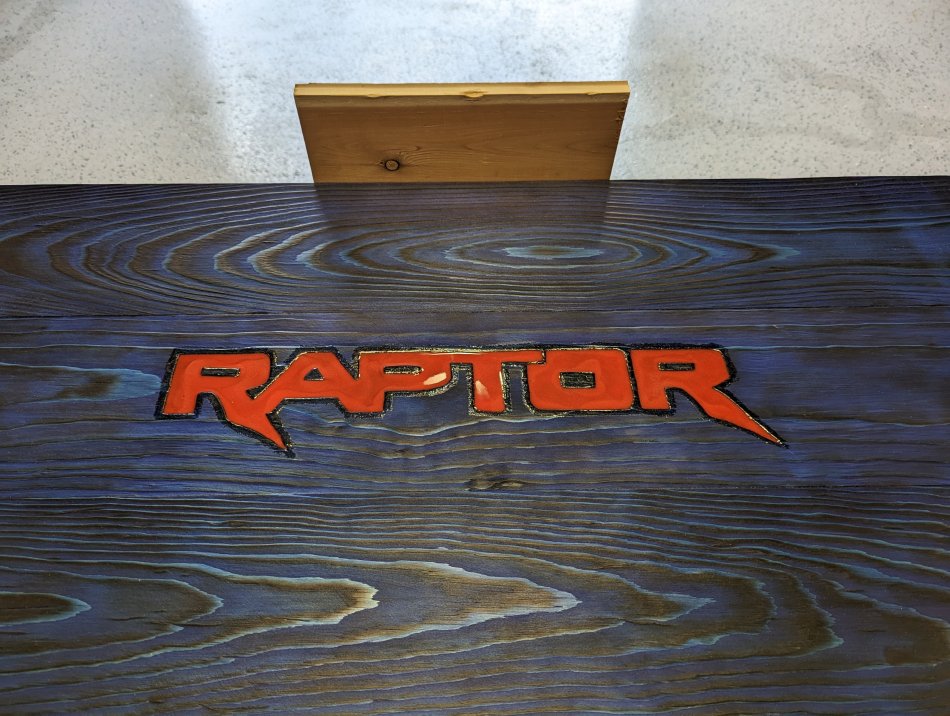

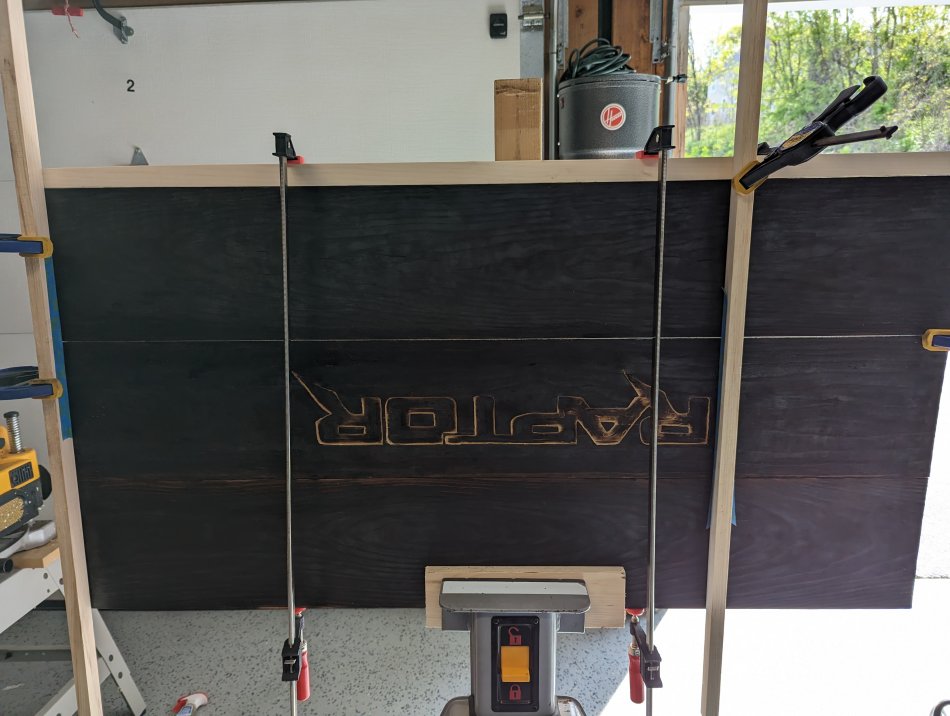

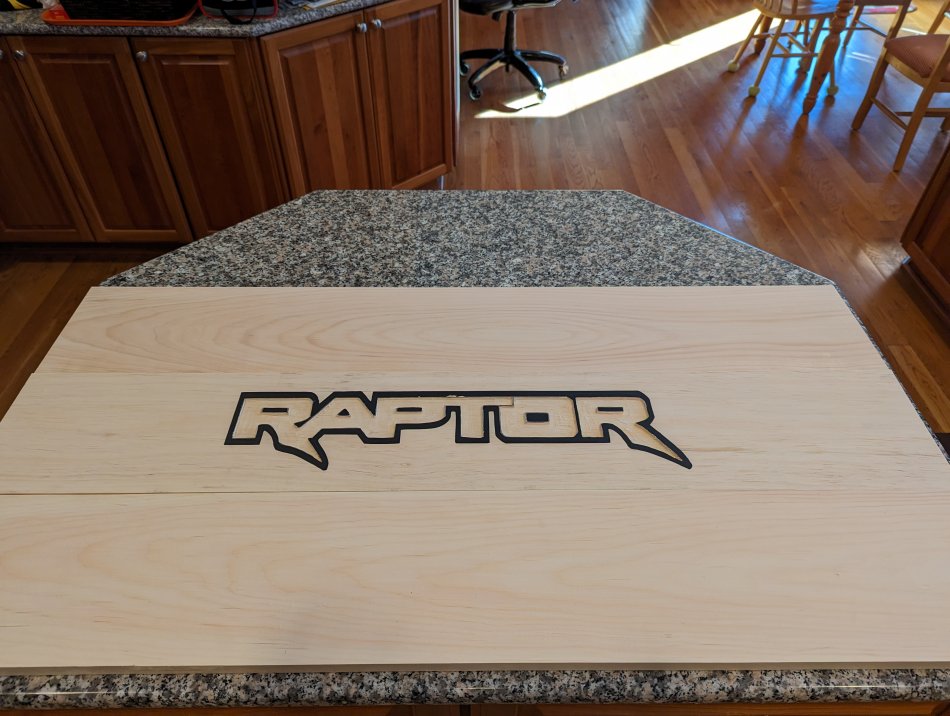

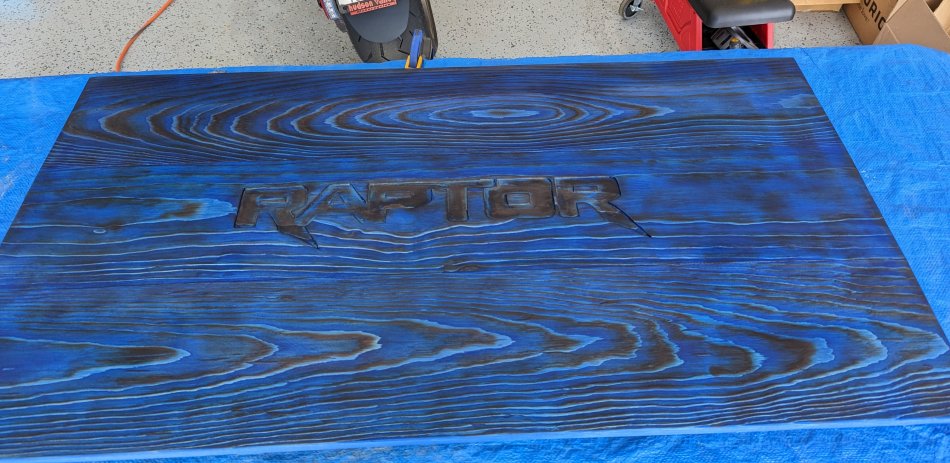

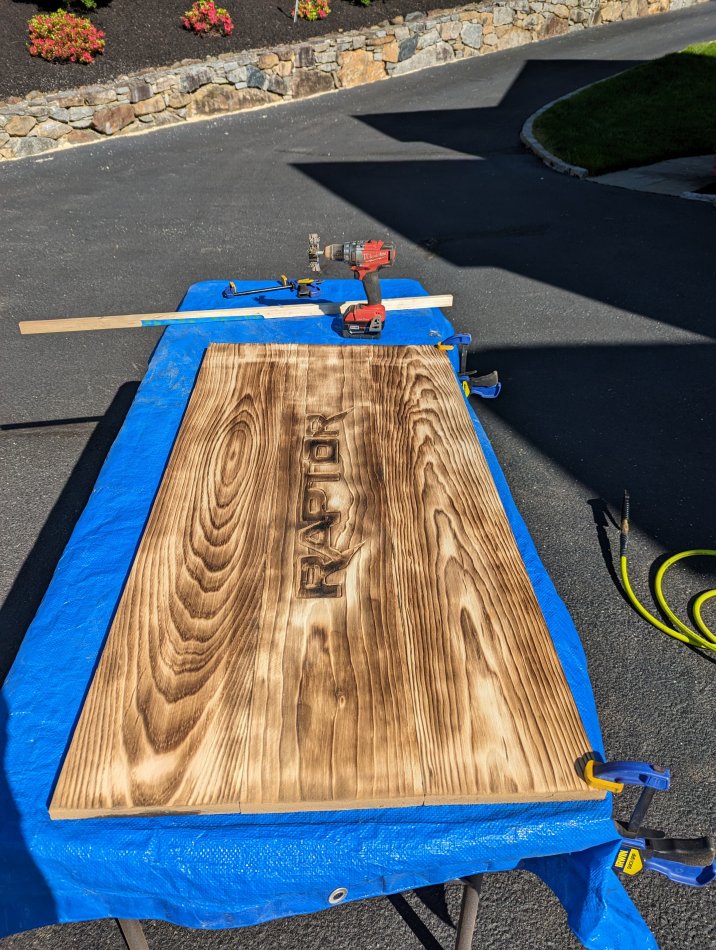

I wasn't happy with the first one - so I made another one. Really happy with this one.


Attachments

  • PXL_20230509_113101059.jpg
    146.6 KB · Views: 69
  • PXL_20230508_175408839 (1).jpg
    PXL_20230508_175408839 (1).jpg
    115.7 KB · Views: 72
  • PXL_20230508_142237599.jpg
    195.4 KB · Views: 78
  • PXL_20230508_131522794.jpg
    196.6 KB · Views: 67
  • PXL_20230507_195818351.jpg
    98.8 KB · Views: 72
  • PXL_20230507_160455985.MP.jpg
    92.8 KB · Views: 66
  • PXL_20230507_143001562.jpg
    157.3 KB · Views: 69
  • PXL_20230507_123117624.jpg
    115.5 KB · Views: 77
  • PXL_20230507_023216882.jpg
    182.9 KB · Views: 68
  • PXL_20230506_212250488.jpg
    119.7 KB · Views: 83
OP
OP
Johnny Mo

Johnny Mo

Member
Joined
Feb 20, 2022
Messages
89
Reaction score
57
Location
Westchester County NY
I would want to just hang that up on my wall!! I need this!!

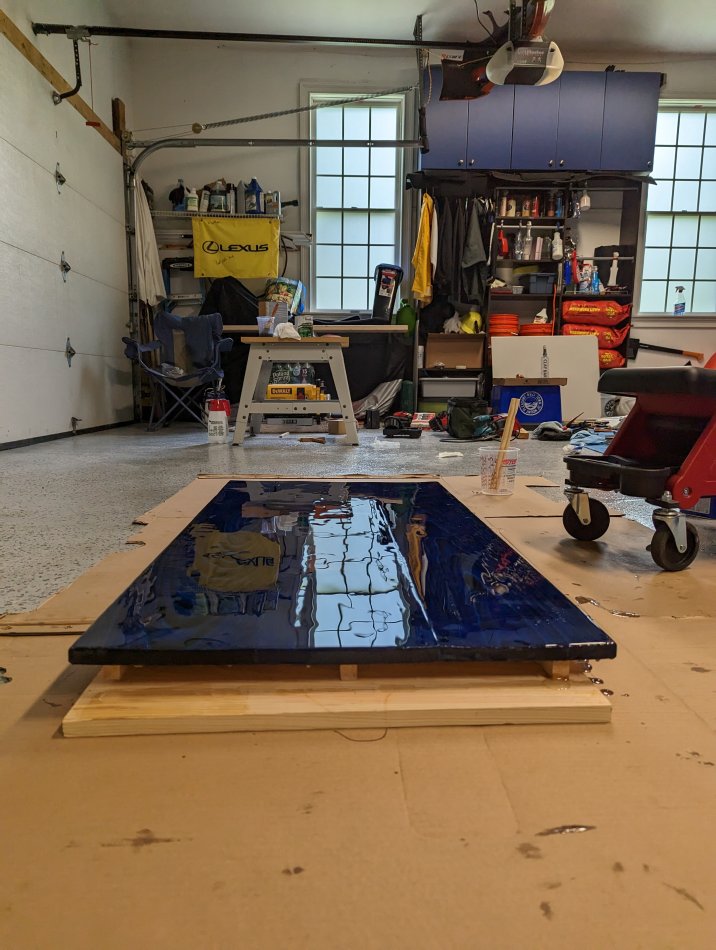

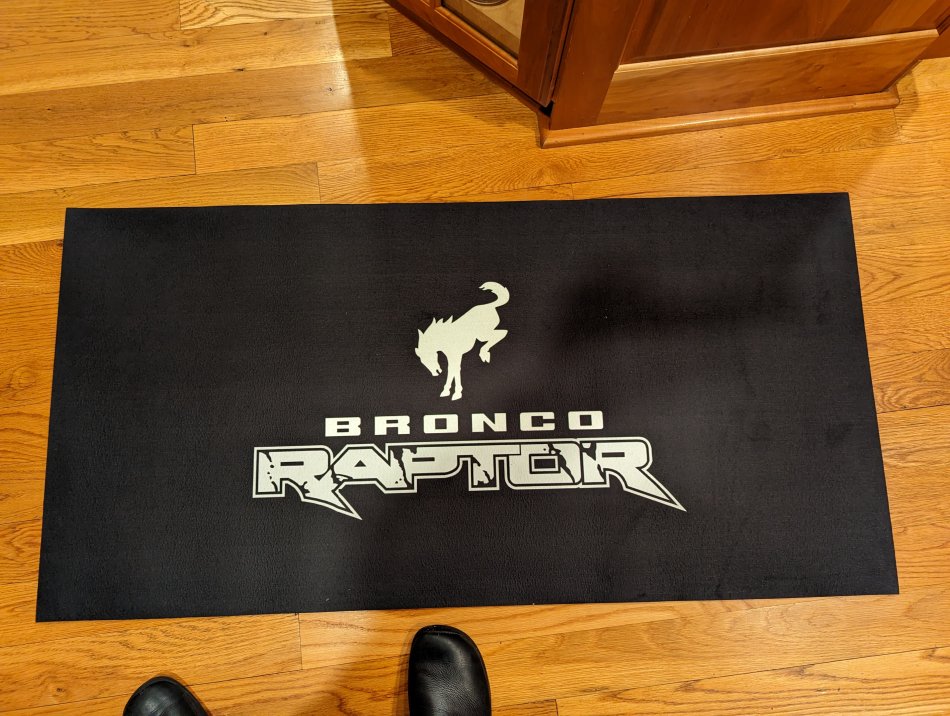

The pics really don't even do it justice - the effect of the clear coat on the burnt and stained wood gives a stunning 3D effect. Final clear coat goes on Monday. This is after the 2nd clear...The rubber mat will be used if anything is too rough to rest on it. Also bought amazon table legs to make it into a portable table. (but I ordered the black ones)



Attachments

  • PXL_20230514_005215588.jpg
    138.1 KB · Views: 84
  • PXL_20230513_160425619.jpg
    122.5 KB · Views: 88
  • PXL_20230328_005521187.jpg
    142.8 KB · Views: 92

Shaggy

Administrator
Staff member
Admin
Joined
Oct 30, 2021
Messages
851
Reaction score
243
Location
Arizona
The pics really don't even do it justice - the effect of the clear coat on the burnt and stained wood gives a stunning 3D effect. Final clear coat goes on Monday. This is after the 2nd clear...The rubber mat will be used if anything is too rough to rest on it. Also bought amazon table legs to make it into a portable table. (but I ordered the black ones)


Honestly, you willing to make one for me and I will pay ya for your time and materials??


LuckyKnuckle36

Active member
Joined
Jan 24, 2022
Messages
277
Reaction score
147
Location
MD
The pics really don't even do it justice - the effect of the clear coat on the burnt and stained wood gives a stunning 3D effect. Final clear coat goes on Monday. This is after the 2nd clear...The rubber mat will be used if anything is too rough to rest on it. Also bought amazon table legs to make it into a portable table. (but I ordered the black ones)

Beautiful man! You want to make me a Harley Davidson one :)

OP
OP
Johnny Mo

Johnny Mo

Member
Joined
Feb 20, 2022
Messages
89
Reaction score
57
Location
Westchester County NY
Beautiful man! You want to make me a Harley Davidson one :)
A harley one would be alot of engraving. I'm trying to see if I can make one with a decal under the epoxy to see how that comes out. Keep ya posted. Big concern other than the initial price would also be shipping price. I wouldn't mind having a hobby like this...I'm still thinking about it.


MDJAK

New member
Joined
Jan 17, 2023
Messages
3
Reaction score
0
Location
new york
Looks awesome. My wife makes quilts, etc. she makes me custom covers to protect the center console, etc. I want one that says Raptor but she can’t find the proper R anywhere. How did you copy the font?
